Volkswagen 2014-2016 1984 CC 82.5 X 92.8 4
PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|
CR4637SV
sliver based |
C4637U-SV C4637L-SM |
4 Pairs |
1,2,3,4 |
47.78 / 47.76 |
50.62 / 50.60 |
17.4 |
1.404 |
|
|

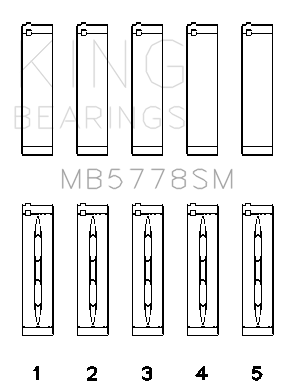

MB5778SM
bimetal (strengthened aluminum) |
M5778U-SM M5778L-SM |
5 Pairs |
1,2,3,4,5 |
57.98 / 57.96 |
63.02 / 63.00 |
15.4 |
2.504 |
|
|
TW1045AM
bimetal (aluminum base) |
W1045-AM |
1 Pair |
63.75 / 63.50 |
76.50 / 76.25 |
0.0 |
1.970 |
Optional PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|
CR4637GPC
Optional To CR4637SV: Race Bearings silver based (racing line), polymer coated |
C4637PRC-SV |
4 Pairs |
1,2,3,4 |
47.78 / 47.76 |
50.62 / 50.60 |
17.4 |
1.404 |
|
|
CR5000GPC
Optional To CR5000SV: Race Bearings silver based (racing line), polymer coated |
C4637PRC-SV |
5 Pairs |
1,2,3,4,5 |
47.78 / 47.76 |
50.62 / 50.60 |
17.4 |
1.404 |
|
|
CR5000SV
Optional To CR4637SV: 5 pairs version of CR4637SV sliver based |
C4637U-SV C4637L-SM |
5 Pairs |
1,2,3,4,5 |
47.78 / 47.76 |
50.62 / 50.60 |
17.4 |
1.404 |
|
|

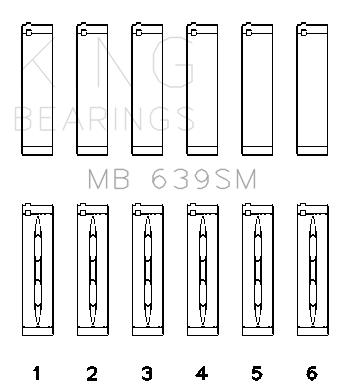

MB 639SM
Optional To MB5778SM: 6 pairs version of MB5778SM bimetal (strengthened aluminum) |
M5778U-SM M5778L-SM |
6 Pairs |
1,2,3,4,5,6 |
57.98 / 57.96 |
63.02 / 63.00 |
15.4 |
2.504 |
|
|

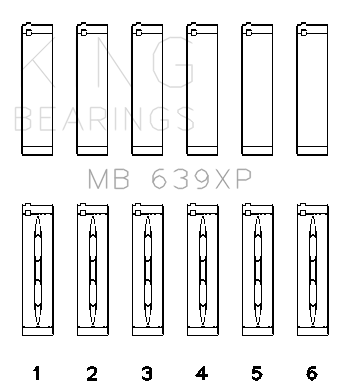

MB 639XP
Optional To MB 639SM: Material Version (pMax Black) Race bearings, Trimetal [pMax Black] |
M5778U/PR-SX M5778L/PR-SX |
6 Pairs |
1,2,3,4,5,6 |
57.98 / 57.96 |
63.02 / 63.00 |
15.4 |
2.504 |
|
|

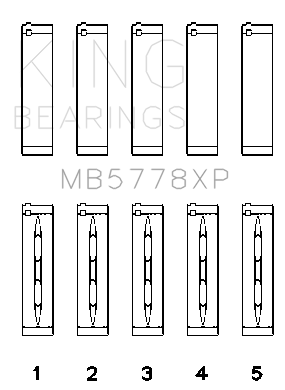

MB5778XP
Optional To MB5778SM: Material Version (pMax Black) Race bearings, Trimetal [pMax Black] |
M5778U/PR-SX M5778L/PR-SX |
5 Pairs |
1,2,3,4,5 |
57.98 / 57.96 |
63.02 / 63.00 |
15.4 |
2.504 |
