General Motors 1962-1963 3196 CC 103.2 X 95.3 4
PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|

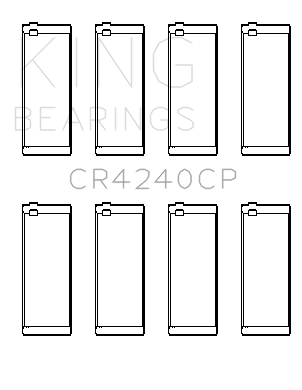

CR4240CP
trimetal |
C 815-CP |
4 Pairs |
57.14 / 57.12 |
60.33 / 60.31 |
22.5 |
1.570 |
||
|
CS 511BB
1963-1963 bimetal (babbitt) |
S 511- |
5 |
1,2,3,4,5 |
48.25 / 48.24 |
51.61 / 51.55 |
17.3 |
1.636 |
|
|
CS 538BB
1961-1962 bimetal (babbitt) |
S 538/1- S 538/2- |
1 4 |
1 2,3,4,5 |
48.25 / 22.84 48.25 / 22.84 |
51.61 / 51.55 51.61 / 51.55 |
26.9 17.3 |
1.636 1.636 |
|
|
MB5523AM
bimetal (aluminum base) |
M5511/1U-AM F5511U-AM M5511/5U-AM M5511/5L-AM |
3 Pairs 1 Pair 1 Pair |
1,2,3 4 5 |
76.20 / 76.17 76.20 / 76.17 76.20 / 76.17 |
81.00 / 80.98 81.00 / 80.98 81.00 / 80.98 |
23.9 28.9 40.5 |
2.377 2.377 2.377 |
Optional PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|

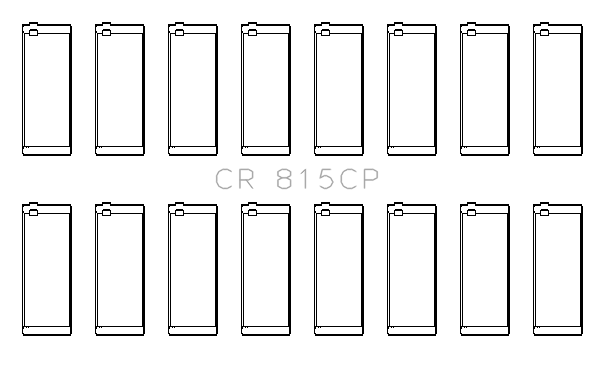

CR 815CP
Optional To CR4240CP: 8 pairs version of CR4240CP trimetal |
C 815-CP |
8 Pairs |
57.14 / 57.12 |
60.33 / 60.31 |
22.5 |
1.570 |
||
|

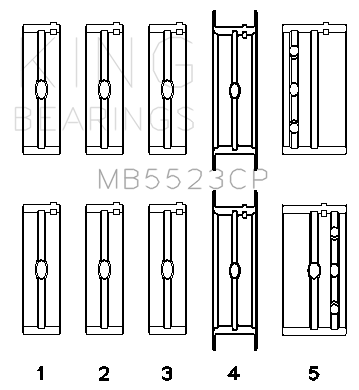

MB5523CP
Optional To MB5523AM: Material Version (Tri-Metal) trimetal |
M5511/1U-CP F5511U-CP M5511/5U-CP M5511/5L-CP |
3 Pairs 1 Pair 1 Pair |
1,2,3 4 5 |
76.20 / 76.17 76.20 / 76.17 76.20 / 76.17 |
81.00 / 80.98 81.00 / 80.98 81.00 / 80.98 |
23.9 28.9 40.5 |
2.377 2.377 2.377 |
