General Motors 1972 7441 CC 108 X 101.6 8
PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|

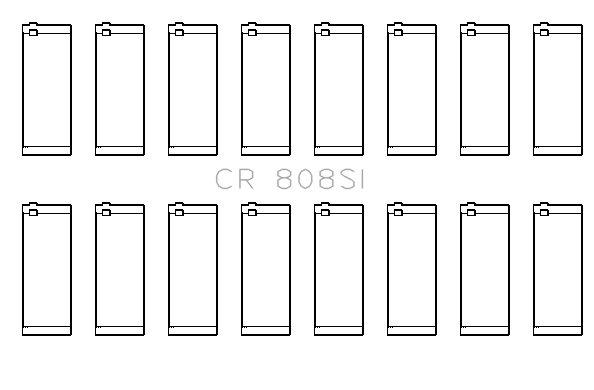

CR 808SI
bimetal (aluminum silicon base) |
C 808-SI |
8 Pairs |
55.88 / 55.85 |
59.06 / 59.05 |
22.6 |
1.577 |
||
|
CS 524BB
1967-1995 bimetal (babbitt) |
S 524/1- S 524/2- S 524/3- |
1 2 2 |
1 2,5 3-4 |
49.52 / 49.50 49.52 / 49.50 49.52 / 49.50 |
54.37 / 54.34 54.11 / 54.09 53.86 / 53.84 |
22.1 25.1 25.1 |
2.390 2.263 2.136 |
|
|
CS4404BB
1965-1966 bimetal (babbitt) |
S4404/1- S4404/2- S4404/3- S4404/5- |
1 1 2 1 |
1 2 3-4 5 |
49.52 / 49.50 49.52 / 49.50 49.52 / 49.50 49.52 / 49.50 |
54.37 / 54.34 54.11 / 54.09 53.86 / 53.84 54.11 / 54.09 |
22.1 25.1 25.1 25.1 |
2.390 2.263 2.136 2.271 |
|
|
MB 556SI
bimetal (aluminum silicon base) |
M 556U-SI M 556L-SI F 556U-SI F 556L-SI |
4 Pairs 1 Pair |
1,2,3,4 5 |
69.84 / 69.81 69.82 / 69.79 |
74.63 / 74.60 74.63 / 74.60 |
25.5 46.1 |
2.375 2.375 |
Optional PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|

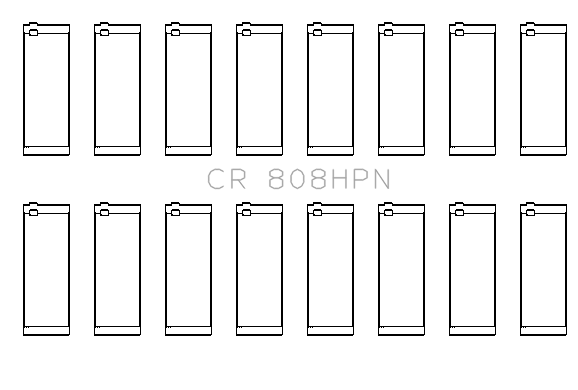

CR 808HPN
Optional To CR 808SI: Race Bearings alecular (racing line) |
C 808U/N-SI C 808L/N-SI |
8 Pairs |
55.88 / 55.85 |
59.06 / 59.05 |
21.3 |
1.572 |
||
|

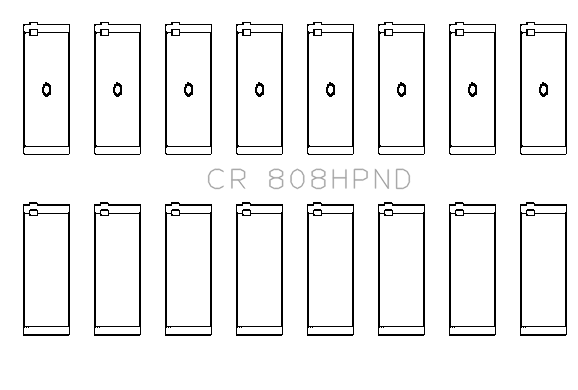

CR 808HPND
Optional To CR 808SI: Race Bearings alecular (racing line) |
C 808U/N-SI C 808L/ND-SI |
8 Pairs |
55.88 / 55.85 |
59.06 / 59.05 |
21.3 |
1.572 |
||
|

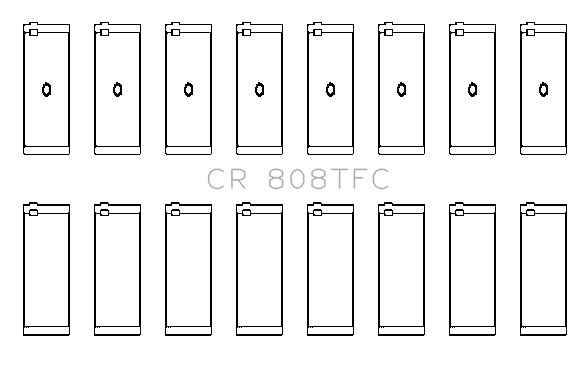

CR 808TFC
Optional To CR 808SI: Material Version (Teflon Polymer) top fuel/ pro mod (racing line), polymer coated |
C 808U/PRC-CP C 808L/PRC-CP |
8 Pairs |
55.88 / 55.85 |
59.06 / 59.05 |
21.3 |
1.572 |
||
|

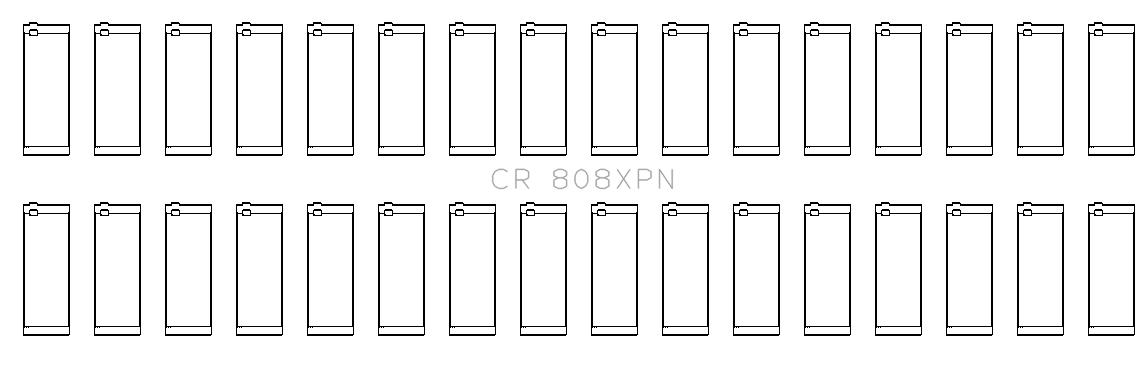

CR 808XPN
Optional To CR 808SI: Race Bearings Race bearings, Trimetal [pMax Black] |
C 808U/N-SX C 808L/N-SX |
8 Pairs |
55.88 / 55.85 |
59.06 / 59.05 |
21.3 |
1.572 |
||
|

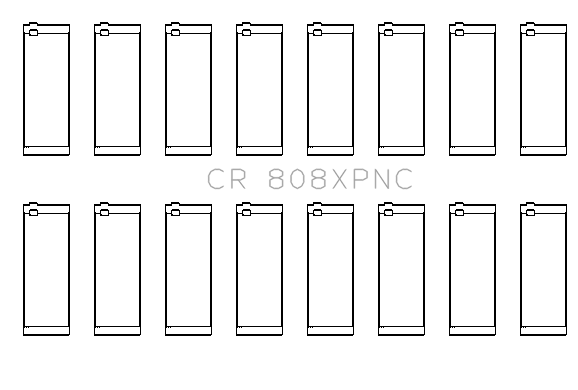

CR 808XPNC
Optional To CR 808SI: Race Bearings pmaxkote (racing line), polymer coated |
C 808U/NC-SX C 808L/NC-SX |
8 Pairs |
55.88 / 55.85 |
59.06 / 59.05 |
21.3 |
1.572 |
||
|

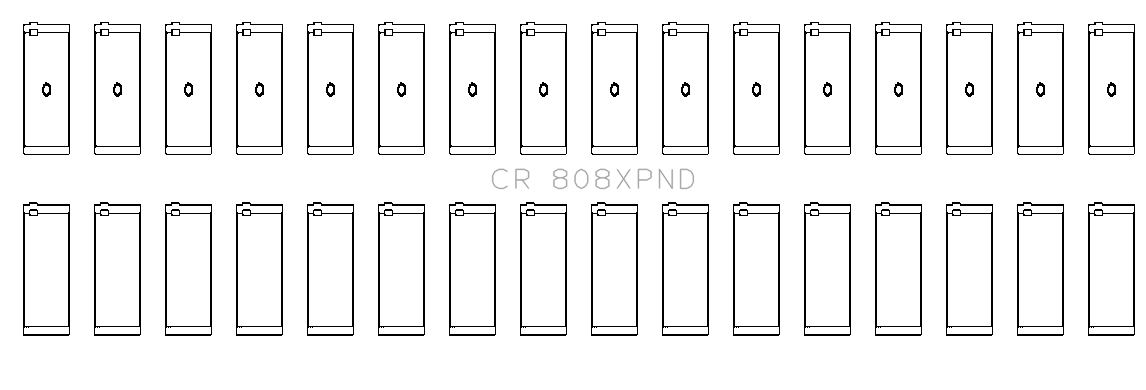

CR 808XPND
Optional To CR 808SI: Race Bearings Race bearings, Trimetal [pMax Black] |
C 808U/N-SX C 808L/ND-SX |
8 Pairs |
55.88 / 55.85 |
59.06 / 59.05 |
21.3 |
1.572 |
||
|

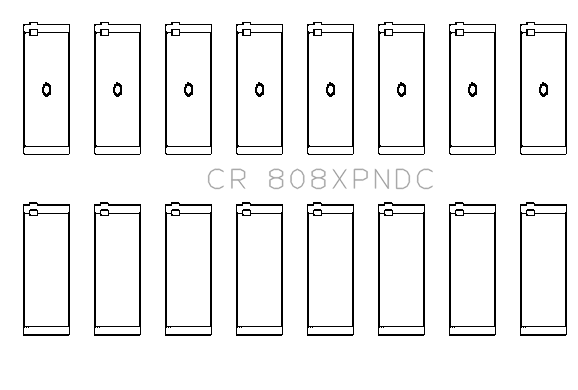

CR 808XPNDC
Optional To CR 808SI: Race Bearings pmaxkote (racing line), polymer coated |
C 808U/NC-SX C 808L/NDC-SX |
8 Pairs |
55.88 / 55.85 |
59.06 / 59.05 |
21.3 |
1.572 |
||
|

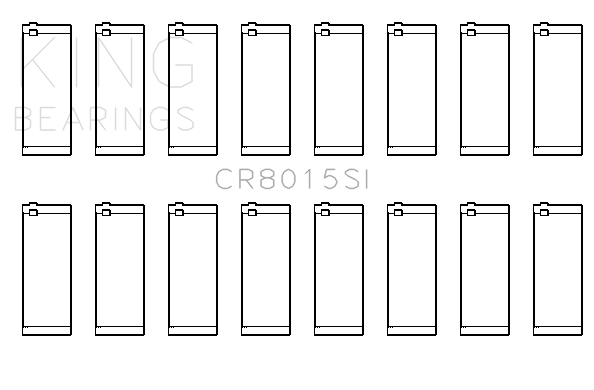

CR8015SI
Optional To CR 808SI: housing bore +.002" bimetal (aluminum silicon base) |
C8015-SI |
8 Pairs |
55.88 / 55.85 |
59.11 / 59.10 |
22.6 |
1.602 |
||
|
CS 524GMP
Optional To CS 524BB: Material Version alecular (racing line), coated |
S 524/1- S 524/2- S 524/3- |
1 2 2 |
1 2,5 3-4 |
49.52 / 49.50 49.52 / 49.50 49.52 / 49.50 |
54.37 / 54.34 54.11 / 54.09 53.86 / 53.84 |
22.1 25.1 25.1 |
2.390 2.263 2.136 |
|
|
CS 524HP
Optional To CS 524BB: Material Version (Alecular Bi-Metal) alecular (racing line) |
S 524/1- S 524/2- S 524/3- |
1 2 2 |
1 2,5 3-4 |
49.52 / 49.50 49.52 / 49.50 49.52 / 49.50 |
54.37 / 54.34 54.11 / 54.09 53.86 / 53.84 |
22.1 25.1 25.1 |
2.390 2.263 2.136 |
|
|
CS 524HPT
Optional To CS 524BB: Race Bearings alecular (racing line) |
S 524/1- S 524/2- S 524/3- |
1 2 2 |
1 2,5 3-4 |
49.52 / 49.50 49.52 / 49.50 49.52 / 49.50 |
54.37 / 54.34 54.11 / 54.09 53.86 / 53.84 |
22.1 25.1 25.1 |
2.390 2.263 2.136 |
|
|
MB 556HP
Superseded By: MB 556HPN Optional To MB 556SI: Material Version (Alecular Bi-Metal) alecular (racing line) |
M 556U/PR-SI M 556L/PRH-SI F 556U/PR-SI F 556L/PRH-SI |
4 Pairs 1 Pair |
1,2,3,4 5 |
69.83 / 69.80 69.82 / 69.79 |
74.63 / 74.60 74.63 / 74.60 |
25.5 46.1 |
2.375 2.375 |
|
|

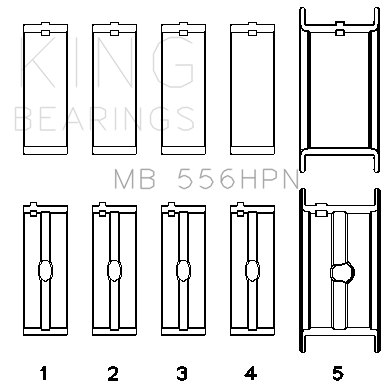

MB 556HPN
Optional To MB 556SI: Race Bearings alecular (racing line) |
M 556U/PRN-SI M 556L/PRN-SI F 556U/PR-SI F 556L/PRH-SI |
4 Pairs 1 Pair |
1,2,3,4 5 |
69.83 / 69.80 69.82 / 69.79 |
74.63 / 74.60 74.63 / 74.60 |
25.4 46.1 |
2.375 2.375 |
|
|

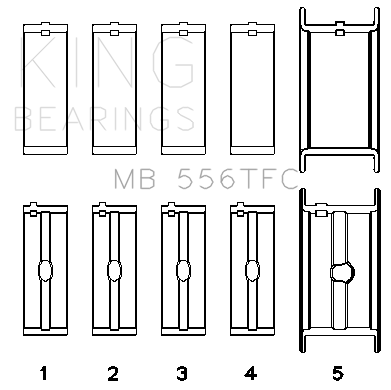

MB 556TFC
Optional To MB 556SI: Material Version (Teflon Polymer) top fuel/ pro mod (racing line), polymer coated |
M 556U/PRC-CP M 556L/PRC-CP F 556U/PRC-CP F 556L/PRC-CP |
4 Pairs 1 Pair |
1,2,3,4 5 |
69.83 / 69.80 69.82 / 69.79 |
74.63 / 74.60 74.63 / 74.60 |
25.5 46.1 |
2.375 2.375 |
|
|
MB 556TFC24L
Optional To MB 556TFC6LF: Modified Version (Teflon Polymer) top fuel/ pro mod (racing line), polymer coated |
*- M 556L/PRC-CP |
24 |
69.83 / 69.80 |
74.63 / 74.60 |
25.5 |
2.375 |
||
|
MB 556TFC24U
Optional To MB 556TFC6LF: Modified Version (Teflon Polymer) top fuel/ pro mod (racing line), polymer coated |
M 556U/PRC-CP |
24 Halves |
69.83 / 69.80 |
74.63 / 74.60 |
25.5 |
2.375 |
||
|
MB 556TFC6LF
Optional To MB 556TFC: 6 lower flange halves top fuel/ pro mod (racing line), polymer coated |
*- F 556L/PRC-CP |
6 |
69.82 / 69.79 |
74.63 / 74.60 |
46.1 |
2.375 |
||
|

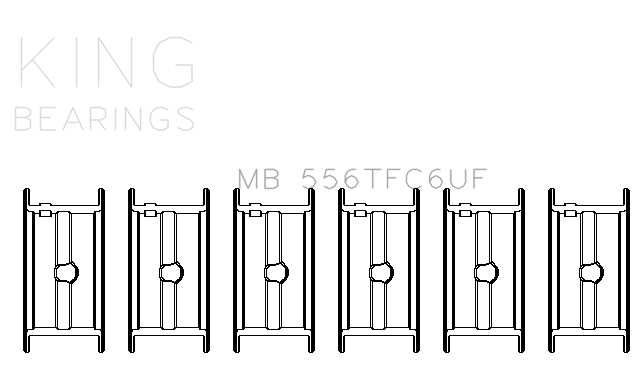

MB 556TFC6UF
Optional To MB 556TFC: 6 upper flange halves top fuel/ pro mod (racing line), polymer coated |
F 556U/PRC-CP |
6 Halves |
69.82 / 69.79 |
74.63 / 74.60 |
46.1 |
2.375 |
||
|
MB 556XP
Superseded By: MB 556XPN Optional To MB 556SI: Material Version (pMax Black) Race bearings, Trimetal [pMax Black] |
M 556U/PR-SX M 556L/PR-SX F 556U/PR-SX F 556L/PR-SX |
4 Pairs 1 Pair |
1,2,3,4 5 |
69.83 / 69.80 69.82 / 69.79 |
74.63 / 74.60 74.63 / 74.60 |
25.5 46.1 |
2.375 2.375 |
|
|
MB 556XPC
Superseded By: MB 556XPNC Optional To MB 556SI: Race Bearings pmaxkote (racing line), polymer coated |
M 556U/PRC-SX M 556L/PRC-SX F 556U/PRC-SX F 556L/PRC-SX |
4 Pairs 1 Pair |
1,2,3,4 5 |
69.83 / 69.80 69.82 / 69.79 |
74.63 / 74.60 74.63 / 74.60 |
25.5 46.1 |
2.375 2.375 |
|
|
MB 556XPN
Optional To MB 556SI: Race Bearings Race bearings, Trimetal [pMax Black] |
M 556U/PRN-SX M 556L/PRN-SX F 556U/PR-SX F 556L/PR-SX |
4 Pairs 1 Pair |
1,2,3,4 5 |
69.83 / 69.80 69.82 / 69.79 |
74.63 / 74.60 74.63 / 74.60 |
25.4 46.1 |
2.375 2.375 |
|
|
MB 556XPNC
Optional To MB 556SI: Race Bearings pmaxkote (racing line), polymer coated |
M 556UPRNC-SX M 556LPRNC-SX F 556U/PRC-SX F 556L/PRC-SX |
4 Pairs 1 Pair |
1,2,3,4 5 |
69.83 / 69.80 69.82 / 69.79 |
74.63 / 74.60 74.63 / 74.60 |
25.4 46.1 |
2.375 2.375 |
|
|
MB1124HP
Optional To MB 556HPN: 1 flange pair alecular (racing line) |
F 556U/PR-SI F 556L/PRH-SI |
1 Pair |
69.82 / 69.79 |
74.63 / 74.60 |
46.1 |
2.375 |
||
|

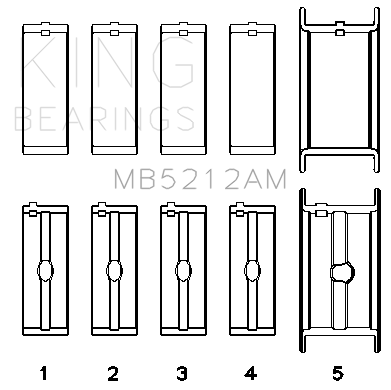

MB5212AM
Optional To MB 556SI: flange O/S .010" bimetal (aluminum base) |
M 556U-SI M 556L-SI F5212U-AM F5212L-AM |
4 Pairs 1 Pair |
1,2,3,4 5 |
69.84 / 69.81 69.82 / 69.79 |
74.63 / 74.60 74.63 / 74.60 |
26.5 46.0 |
2.375 2.375 |
|
|

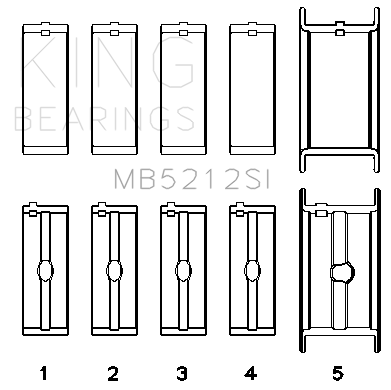

MB5212SI
Optional To MB 556SI: flange O/S .010" bimetal (aluminum silicon base) |
M 556U-SI M 556L-SI F5212U-SI F5212L-SI |
4 Pairs 1 Pair |
1,2,3,4 5 |
69.84 / 69.81 69.82 / 69.79 |
74.63 / 74.60 74.63 / 74.60 |
26.5 46.1 |
2.375 2.375 |
|
|
MB5213AM
Optional To MB 556SI: flange O/S .020" bimetal (aluminum base) |
M 556U-AM M 556L-AM F5213U-AM F5213L-AM |
4 Pairs 1 Pair |
1,2,3,4 5 |
69.84 / 69.81 69.82 / 69.79 |
74.63 / 74.60 74.63 / 74.60 |
26.5 46.1 |
2.375 2.375 |
|
|

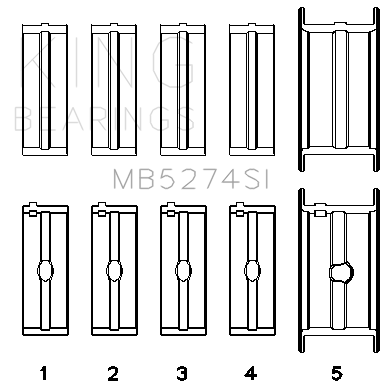

MB5274SI
Optional To MB 556SI: housing bore +.020" bimetal (aluminum silicon base) |
M5274U-SI M5274L-SI F5274U-SI F5274L-SI |
4 Pairs 1 Pair |
1,2,3,4 5 |
69.84 / 69.81 69.82 / 69.79 |
75.13 / 75.11 75.13 / 75.11 |
26.5 46.1 |
2.629 2.629 |
