Ford 1969-1971 4949 CC 101.6 X 76.2 8
PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|

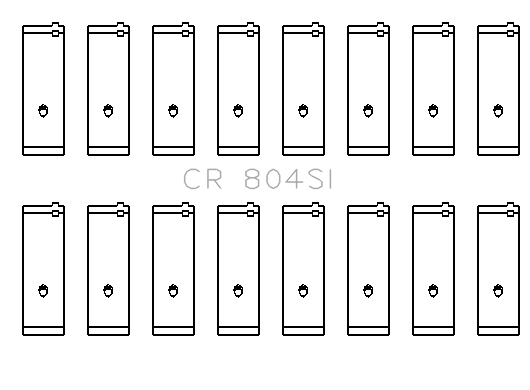

CR 804SI
bimetal (aluminum silicon base) |
C 804-SI |
8 Pairs |
53.94 / 53.92 |
56.89 / 56.87 |
18.4 |
1.461 |
||
|
CS 514BB
bimetal (babbitt) |
S 514/1- S 514/2- S 514/3- S 514/4- S 514/5- |
1 1 1 1 1 |
1 2 3 4 5 |
52.87 / 52.84 52.49 / 52.46 52.11 / 52.08 51.73 / 51.70 51.35 / 51.32 |
56.01 / 55.96 55.63 / 55.58 55.25 / 55.19 54.86 / 54.81 54.48 / 54.43 |
16.8 16.8 16.8 16.8 16.8 |
1.529 1.529 1.529 1.529 1.529 |
|
|
CS 514HP
alecular (racing line) |
S 514/1- S 514/2- S 514/3- S 514/4- S 514/5- |
1 1 1 1 1 |
1 2 3 4 5 |
52.87 / 52.84 52.49 / 52.46 52.11 / 52.08 51.73 / 51.70 51.35 / 51.32 |
56.01 / 55.96 55.63 / 55.58 55.25 / 55.19 54.86 / 54.81 54.48 / 54.43 |
16.8 16.8 16.8 16.8 16.8 |
1.529 1.529 1.529 1.529 1.529 |
|
|
MB 529SI
bimetal (aluminum silicon base) |
M 529U-SI M 529L-SI F 529U-SI F 529L-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
57.12 / 57.10 57.12 / 57.10 |
62.03 / 62.01 62.03 / 62.01 |
22.6 28.9 |
2.438 2.438 |
Optional PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|

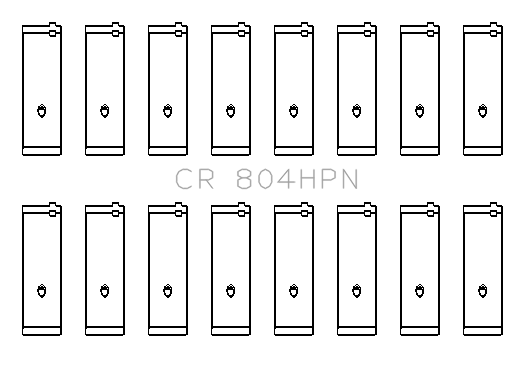

CR 804HPN
Optional To CR 804SI: Race Bearings alecular (racing line) |
C 804U/N-SI C 804L/N-SI |
8 Pairs |
53.94 / 53.92 |
56.89 / 56.87 |
17.2 |
1.462 |
||
|
CR 804XPN
Optional To CR 804SI: Race Bearings Race bearings, Trimetal [pMax Black] |
C 804U/N-SX C 804L/N-SX |
8 Pairs |
53.94 / 53.92 |
56.89 / 56.87 |
17.2 |
1.462 |
||
|

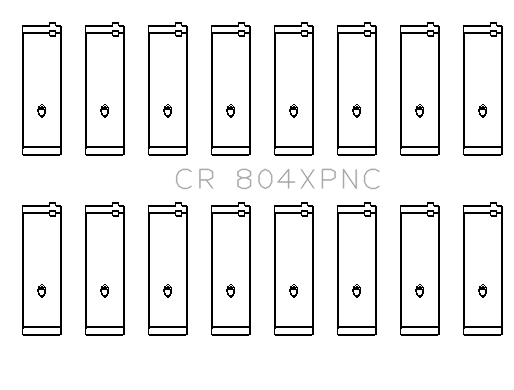

CR 804XPNC
Optional To CR 804SI: Race Bearings pmaxkote (racing line), polymer coated |
C 804U/NC-SX C 804L/NC-SX |
8 Pairs |
53.94 / 53.92 |
56.89 / 56.87 |
17.2 |
1.462 |
||
|

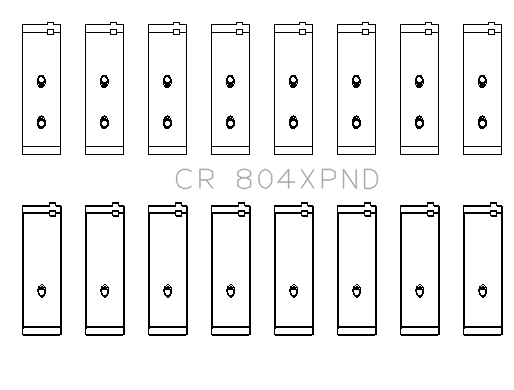

CR 804XPND
Optional To CR 804SI: Race Bearings Race bearings, Trimetal [pMax Black] |
C 804U/N-SX C 804L/ND-SX |
8 Pairs |
53.94 / 53.92 |
56.89 / 56.87 |
17.2 |
1.462 |
||
|

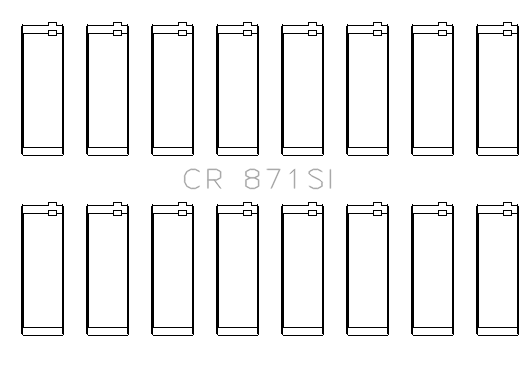

CR 871SI
Optional To CR 804SI: housing bore +.002" bimetal (aluminum silicon base) |
C 871-SI |
8 Pairs |
53.94 / 53.92 |
56.94 / 56.92 |
18.4 |
1.486 |
||
|
CS 514HPT
Optional To CS 514HP: Race Bearings alecular (racing line) |
S 514/1- S 514/2- S 514/3- S 514/4- S 514/5- |
1 1 1 1 1 |
1 2 3 4 5 |
52.87 / 52.84 52.49 / 52.46 52.11 / 52.08 51.73 / 51.70 51.35 / 51.32 |
56.01 / 55.96 55.63 / 55.58 55.25 / 55.19 54.86 / 54.81 54.48 / 54.43 |
16.8 16.8 16.8 16.8 16.8 |
1.529 1.529 1.529 1.529 1.529 |
|
|
MB 529HP
Optional To MB 529SI: Material Version (Alecular Bi-Metal) alecular (racing line) |
M 529U/PR-SI M 529L/PRH-SI F 529U/PR-SI F 529L/PRH-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
57.12 / 57.10 57.12 / 57.10 |
62.03 / 62.01 62.03 / 62.01 |
22.6 28.9 |
2.438 2.438 |
|
|

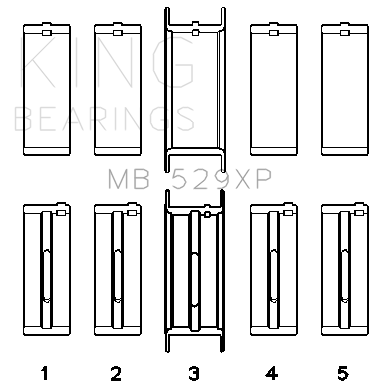

MB 529XP
Optional To MB 529SI: Material Version (pMax Black) Race bearings, Trimetal [pMax Black] |
M 529U/PR-SX M 529L/PR-SX F 529U/PR-SX F 529L/PR-SX |
4 Pairs 1 Pair |
1,2,4,5 3 |
57.12 / 57.10 57.12 / 57.10 |
62.03 / 62.01 62.03 / 62.01 |
22.6 28.9 |
2.438 2.438 |
|
|
MB 529XPC
Optional To MB 529SI: Race Bearings pmaxkote (racing line), polymer coated |
M 529U/PRC-SX M 529L/PRC-SX F 529U/PRC-SX F 529L/PRC-SX |
4 Pairs 1 Pair |
1,2,4,5 3 |
57.12 / 57.10 57.12 / 57.10 |
62.03 / 62.01 62.03 / 62.01 |
22.6 28.9 |
2.438 2.438 |
|
|

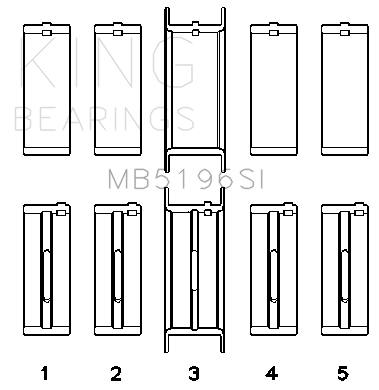

MB5196SI
Optional To MB 529SI: Flange O/S .020" bimetal (aluminum silicon base) |
M 529U-SI M 529L-SI F5196U-SI F5196L-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
57.12 / 57.10 57.12 / 57.10 |
62.03 / 62.01 62.03 / 62.01 |
22.6 28.9 |
2.438 2.441 |
|
|
MB5197AM
Optional To MB 529SI: flange O/S .030" bimetal (aluminum base) |
M 529U-AM M 529L-AM F5197U-AM F5197L-AM |
4 Pairs 1 Pair |
1,2,4,5 3 |
57.12 / 57.10 57.12 / 57.10 |
62.03 / 62.01 62.03 / 62.01 |
22.6 28.9 |
2.441 2.441 |
|
|
MB5197SI
Optional To MB 529SI: flange O/S .030" bimetal (aluminum silicon base) |
M 529U-SI M 529L-SI F5197U-SI F5197L-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
57.12 / 57.10 57.12 / 57.10 |
62.03 / 62.01 62.03 / 62.01 |
22.6 28.9 |
2.438 2.441 |
