General Motors 2007-2009 5967 CC 101.6 X 92 8
PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|

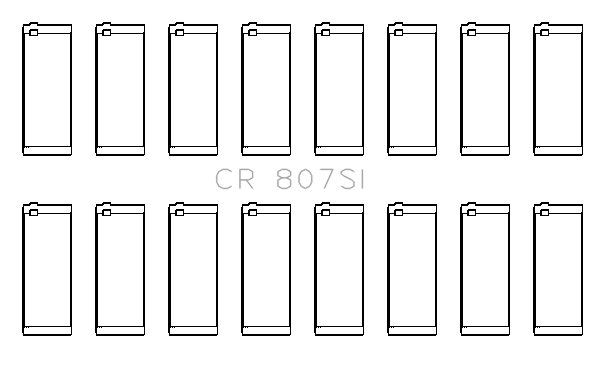

CR 807SI
bimetal (aluminum silicon base) |
C 807-SI |
8 Pairs |
53.34 / 53.31 |
56.52 / 56.51 |
21.3 |
1.577 |
||
|
CS5171BB
2006-2013 .775" wide bimetal (babbitt) |
S5171/1-SI S5171/2-SI S5171/3-SI |
2 2 1 |
1,5 2,4 3 |
0.00 / 0.00 0.00 / 0.00 0.00 / 0.00 |
59.64 / 0.00 59.14 / 0.00 58.64 / 0.00 |
19.7 19.7 19.7 |
2.261 2.300 1.778 |
|
|
CS5172HP
alecular (racing line) |
S5172- |
5 |
1-5 |
0.00 / 0.00 |
58.50 / 58.47 |
19.8 |
1.659 |
|
|
CS5503BB
1997-2002 bimetal (babbitt) |
S5503/1-CP S5503/2-CP S5503/3-CP |
2 2 1 |
1,5 2,4 3 |
55.04 / 54.99 55.04 / 54.99 55.04 / 54.99 |
59.13 / 59.11 58.88 / 58.83 58.67 / 58.62 |
16.0 16.0 16.0 |
2.029 1.902 1.778 |
|
|
CS5510BB
Superseded By: CS5171BB 2003-2010 bimetal (babbitt) Sale clearance until stocks run out |
S5510/1- S5510/2- S5503/3-CP |
2 2 1 |
1,5 2,4 3 |
55.04 / 54.99 55.04 / 54.99 55.04 / 54.99 |
59.64 / 59.59 59.13 / 59.08 58.67 / 58.62 |
16.0 16.0 16.0 |
2.261 2.007 1.778 |
|
|
MB5293SI
bimetal (aluminum silicon base) |
M5293U-SI M5293L-SI F5293U-SI F5293L-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.2 |
2.426 2.426 |
|
| PB1020SB | B1020-SB |
1 Bush |
23.95 / 23.95 |
26.15 / 26.11 |
23.5 |
1.450 |
Optional PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|

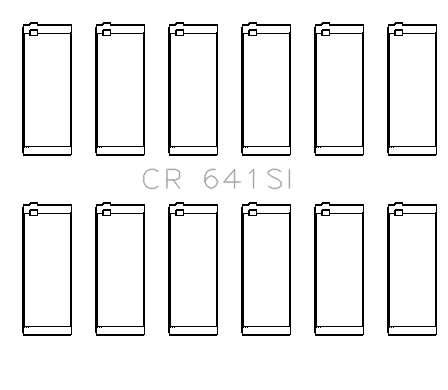

CR 641SI
Optional To CR 807SI: 6 pairs version of CR 807SI bimetal (aluminum silicon base) |
C 807-SI |
6 Pairs |
53.34 / 53.31 |
56.52 / 56.51 |
21.3 |
1.577 |
||
|

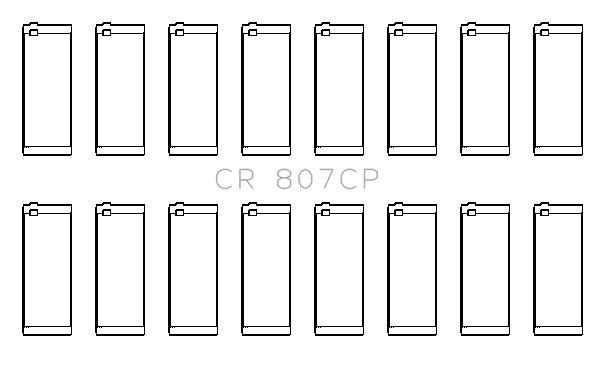

CR 807CP
Optional To CR 807SI: Material Version (Tri-Metal) trimetal |
C 807-CP |
8 Pairs |
53.34 / 53.31 |
56.52 / 56.51 |
21.4 |
1.577 |
||
|
CR 807HPN
Optional To CR 807SI: Race Bearings alecular (racing line) |
C 807U/N-SI C 807L/N-SI |
8 Pairs |
53.34 / 53.31 |
56.52 / 56.51 |
20.1 |
1.573 |
||
|

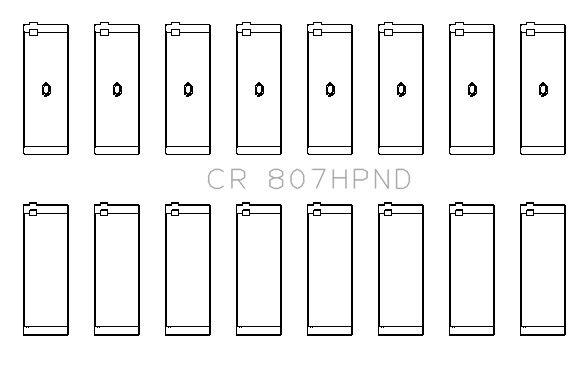

CR 807HPND
Optional To CR 807SI: Race Bearings alecular (racing line) |
C 807U/N-SI C 807L/ND-SI |
8 Pairs |
53.34 / 53.31 |
56.52 / 56.51 |
20.1 |
1.573 |
||
|

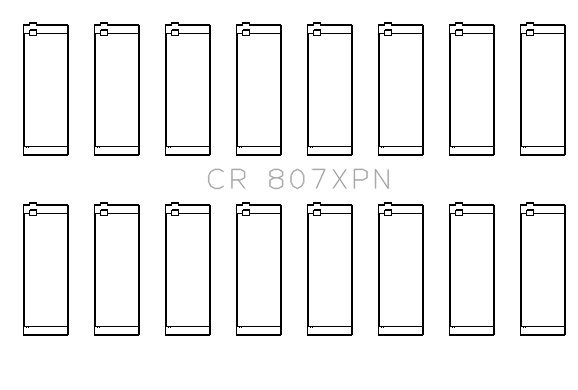

CR 807XPN
Optional To CR 807SI: Race Bearings Race bearings, Trimetal [pMax Black] |
C 807U/N-SX C 807L/N-SX |
8 Pairs |
53.34 / 53.31 |
56.52 / 56.51 |
20.1 |
1.573 |
||
|

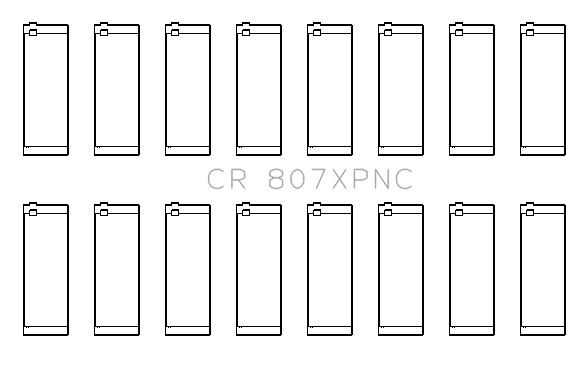

CR 807XPNC
Optional To CR 807SI: Race Bearings pmaxkote (racing line), polymer coated |
C 807U/NC-SX C 807L/NC-SX |
8 Pairs |
53.34 / 53.31 |
56.52 / 56.51 |
20.1 |
1.573 |
||
|

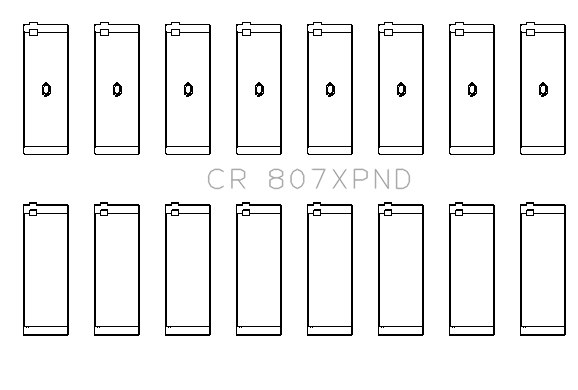

CR 807XPND
Optional To CR 807SI: Race Bearings Race bearings, Trimetal [pMax Black] |
C 807U/N-SX C 807L/ND-SX |
8 Pairs |
53.34 / 53.31 |
56.52 / 56.51 |
20.1 |
1.573 |
||
|

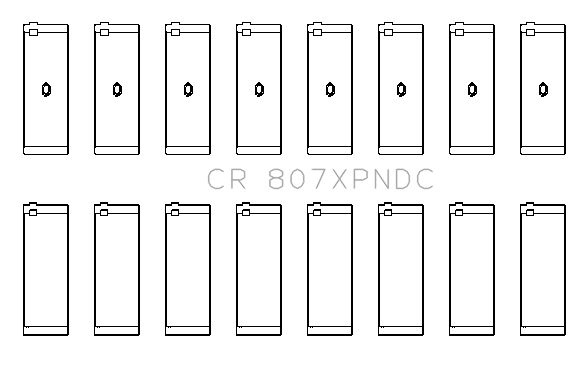

CR 807XPNDC
Optional To CR 807SI: Race Bearings pmaxkote (racing line), polymer coated |
C 807U/NC-SX C 807L/NDC-SX |
8 Pairs |
53.34 / 53.31 |
56.52 / 56.51 |
20.1 |
1.573 |
||
|
CR 865MC
Optional To CR 865SI: Race Bearings bimetal, polymer coated |
C 865C-SI |
8 Pairs |
53.34 / 53.31 |
56.57 / 56.56 |
21.3 |
1.608 |
||
|

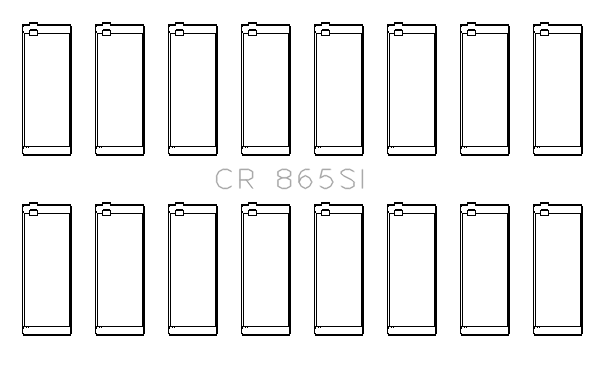

CR 865SI
Optional To CR 807SI: housing bore +.002" bimetal (aluminum silicon base) |
C 865-SI |
8 Pairs |
53.34 / 53.31 |
56.57 / 56.56 |
21.3 |
1.603 |
||
|

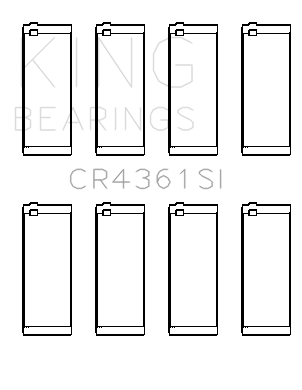

CR4361SI
Optional To CR 807SI: 4 pairs version of CR 807SI bimetal (aluminum silicon base) |
C 807-SI |
4 Pairs |
53.34 / 53.31 |
56.52 / 56.51 |
21.3 |
1.577 |
||
|
CS5171HP
Optional To CS5171BB: Material Version (Alecular Bi-Metal) alecular (racing line) |
S5171/1-SI S5171/2-SI S5171/3-SI |
2 2 1 |
1,5 2,4 3 |
0.00 / 0.00 0.00 / 0.00 0.00 / 0.00 |
59.64 / 0.00 59.14 / 0.00 58.64 / 0.00 |
19.7 19.7 19.7 |
2.261 2.300 1.778 |
|
|
CS5171HPT
Optional To CS5171BB: Race Bearings alecular (racing line) |
S5171/1-SI S5171/2-SI S5171/3-SI |
2 2 1 |
1,5 2,4 3 |
0.00 / 0.00 0.00 / 0.00 0.00 / 0.00 |
59.64 / 0.00 59.14 / 0.00 58.64 / 0.00 |
19.7 19.7 19.7 |
2.261 2.300 1.778 |
|
|
CS5172HPT
Optional To CS5172HP: 5 pairs version of CS5172HP alecular (racing line) |
S5172- |
5 |
1-5 |
0.00 / 0.00 |
58.50 / 58.47 |
19.8 |
1.659 |
|
|
CS5503HP
Optional To CS5503BB: Material Version (Alecular Bi-Metal) alecular (racing line) |
S5503/1-CP S5503/2-CP S5503/3-CP |
2 2 1 |
1,5 2,4 3 |
55.04 / 54.99 55.04 / 54.99 55.04 / 54.99 |
59.13 / 59.08 58.88 / 58.83 58.67 / 58.62 |
16.0 16.0 16.0 |
2.029 1.902 1.778 |
|
|
CS5503HPT
Optional To CS5503BB: Race Bearings alecular (racing line) |
S5503/1-CP S5503/2-CP S5503/3-CP |
2 2 1 |
1,5 2,4 3 |
55.04 / 54.99 55.04 / 54.99 55.04 / 54.99 |
59.13 / 59.08 58.88 / 58.83 58.67 / 58.62 |
16.0 16.0 16.0 |
2.029 1.902 1.778 |
|
|
MB1328XP
Optional To MB5013XP: flange pair Race bearings, Trimetal [pMax Black] |
F5013U/PR-SX F5013L/PR-SX |
1 Pair |
65.01 / 64.99 |
69.89 / 69.87 |
26.2 |
2.428 |
||
|
MB5013HP
Optional To MB5293SI: Race Bearings alecular (racing line) |
M5013U/PR-SI M5013L/PR-SI F5013U/PR-SI F5013L/PR-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.1 |
2.428 2.428 |
|
|
MB5013XP
Optional To MB5293SI: Race Bearings Race bearings, Trimetal [pMax Black] |
M5013U/PR-SX M5013L/PR-SX F5013U/PR-SX F5013L/PR-SX |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.2 |
2.428 2.428 |
|
|
MB5013XPC
Optional To MB5013HP: Race Bearings pmaxkote (racing line), polymer coated |
M5013U/PRC-SX M5013L/PRC-SX F5013U/PRC-SX F5013L/PRC-SX |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.2 |
2.428 2.428 |
|
|
MB5293MC
Optional To MB5293SI: Race Bearings bimetal, polymer coated |
M5293UC-SI M5293LC-SI F5293UC-SI F5293LC-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.1 |
2.431 2.431 |
|
|
MB5398SI
Optional To MB5293SI: housing bore +.020" bimetal (aluminum silicon base) |
M5398U-SI M5398L-SI F5398U-SI F5398L-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
70.39 / 70.38 70.39 / 70.38 |
20.4 26.2 |
2.680 2.680 |
|
|
MB5766SI
Optional To MB5293SI: housing bore +.010" bimetal (aluminum silicon base) |
M5766U-SI M5766L-SI F5766U-SI F5766L-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
70.14 / 70.13 70.14 / 70.13 |
20.4 26.2 |
2.553 2.553 |
|
|
MB5777XP
Optional To MB5293SI: Race Bearings Race bearings, Trimetal [pMax Black] |
F5777U/PR-SX F5013L/PR-SX M5777U/PR-SX M5013L/PR-SX |
1 Pair 4 Pairs |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
26.1 20.4 |
2.428 2.428 |
||
|
MB5875SI
Optional To MB5293SI: flange O/S 010" bimetal (aluminum silicon base) |
M5293U-SI M5293L-SI F5875U-SI F5875L-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.2 |
2.426 2.426 |
|
|
MB5876SI
Optional To MB5293SI: flange O/S 020" bimetal (aluminum silicon base) |
M5293U-SI M5293L-SI F5876U-SI F5876L-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.2 |
2.426 2.426 |
|
|
MB5877SI
Optional To MB5293SI: flange STD bimetal (aluminum silicon base) |
M5293U-SI M5293L-SI F5877U-SI F5877L-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.2 |
2.426 2.426 |
|
|
MB5877SI232L
Optional To MB5877SI: Modified Version (Bi-Metal) bimetal (aluminum silicon base) |
M5293L-SI M5293L-SI |
58 Pairs 58 Pairs |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 20.4 |
2.426 2.426 |
||
|
MB5877SI232U
Optional To MB5877SI: Modified Version (Bi-Metal) bimetal (aluminum silicon base) |
M5293U-SI M5293U-SI |
58 Pairs 58 Pairs |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 20.4 |
2.426 2.426 |
||
|
MB5877SI58LF
Optional To MB5877SI: bimetal (aluminum silicon base) |
F5877L-SI |
29 Pairs |
65.01 / 64.99 |
69.89 / 69.87 |
26.2 |
2.426 |
||
|
MB5877SI58UF
Optional To MB5877SI: Modified Version (Bi-Metal) bimetal (aluminum silicon base) |
F5877U-SI |
29 Pairs |
65.01 / 64.99 |
69.89 / 69.87 |
26.2 |
2.426 |
