General Motors 2015-2022 6162 CC 103.2 X 92 8
PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|

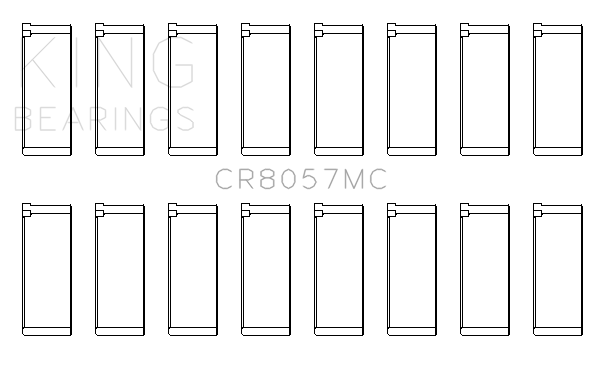

CR8057MC
bimetal, polymer coated |
C8057C-SM |
8 Pairs |
1-8 |
53.34 / 53.31 |
56.52 / 56.51 |
21.3 |
1.573 |
|
|
CS5161HPT
alecular (racing line) |
S5161/1- S5161/2- S5161/3- S5161/5- |
1 2 1 1 |
1 2,4 3 5 |
0.00 / 0.00 0.00 / 0.00 0.00 / 0.00 0.00 / 0.00 |
59.64 / 0.00 59.14 / 0.00 58.64 / 0.00 59.61 / 0.00 |
19.7 19.7 19.7 27.4 |
2.261 2.029 1.778 2.261 |
|
|

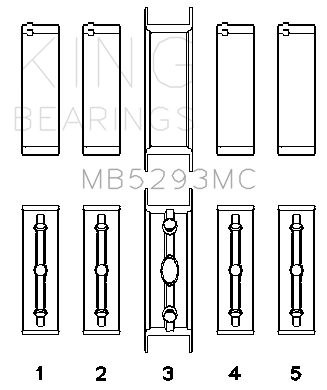

MB5293MC
extra thickness bimetal, polymer coated |
M5293UC-SI M5293LC-SI F5293UC-SI F5293LC-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.1 |
2.431 2.431 |
Optional PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|

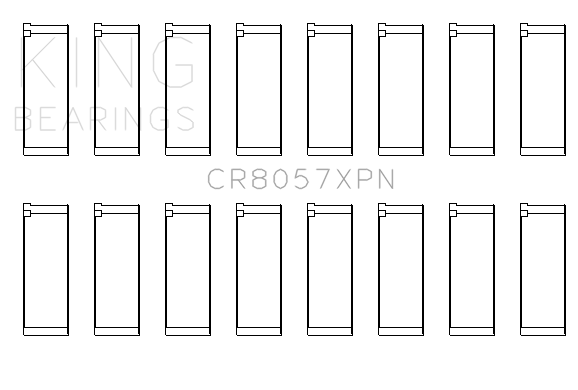

CR8057XPN
Optional To CR8057MC: Material Version (pMax Black), Narrow Race bearings, Trimetal [pMax Black] |
C8057PRN-SX |
8 Pairs |
53.34 / 53.31 |
56.52 / 56.51 |
20.1 |
1.573 |
||
|

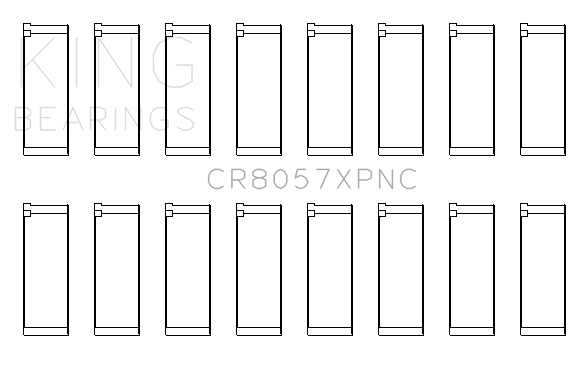

CR8057XPNC
Optional To CR8057MC: Material Version (pMax Black & Polymer), Narrow pmaxkote (racing line), polymer coated |
C8057PRNC-SX |
8 Pairs |
53.34 / 53.31 |
56.52 / 56.51 |
20.1 |
1.573 |
||
|
CR8062MC
Optional To CR8057MC: housing bore +.002" bimetal, polymer coated |
C8062C-SM |
8 Pairs |
53.34 / 53.31 |
56.57 / 56.56 |
21.3 |
1.608 |
||
|
MB1328XP
Optional To MB5013XP: flange pair Race bearings, Trimetal [pMax Black] |
F5013U/PR-SX F5013L/PR-SX |
1 Pair |
65.01 / 64.99 |
69.89 / 69.87 |
26.2 |
2.428 |
||
|

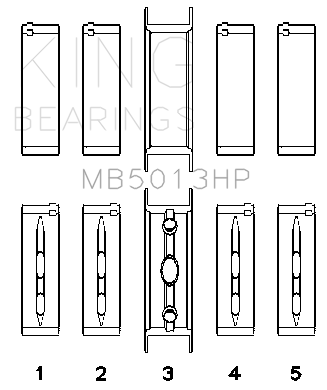

MB5013HP
Optional To MB5293SI: Race Bearings alecular (racing line) |
M5013U/PR-SI M5013L/PR-SI F5013U/PR-SI F5013L/PR-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.1 |
2.428 2.428 |
|
|
MB5013XP
Optional To MB5293MC: Race Bearings Race bearings, Trimetal [pMax Black] |
M5013U/PR-SX M5013L/PR-SX F5013U/PR-SX F5013L/PR-SX |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.2 |
2.428 2.428 |
|
|

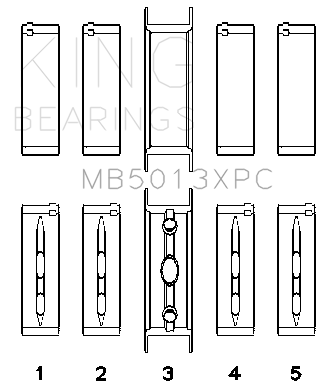

MB5013XPC
Optional To MB5013XP: Race Bearings pmaxkote (racing line), polymer coated |
M5013U/PRC-SX M5013L/PRC-SX F5013U/PRC-SX F5013L/PRC-SX |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.2 |
2.428 2.428 |
|
|

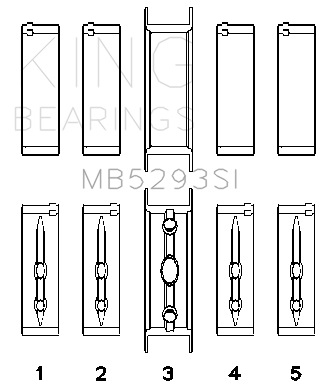

MB5293SI
Optional To MB5293MC: OE-Replacment version (Bi-Metal) bimetal (aluminum silicon base) |
M5293U-SI M5293L-SI F5293U-SI F5293L-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.2 |
2.426 2.426 |
|
|

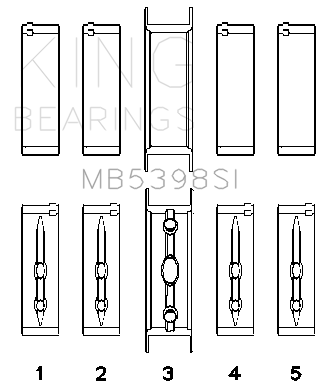

MB5398SI
Optional To MB5293SI: housing bore +.020" bimetal (aluminum silicon base) |
M5398U-SI M5398L-SI F5398U-SI F5398L-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
70.39 / 70.38 70.39 / 70.38 |
20.4 26.2 |
2.680 2.680 |
|
|

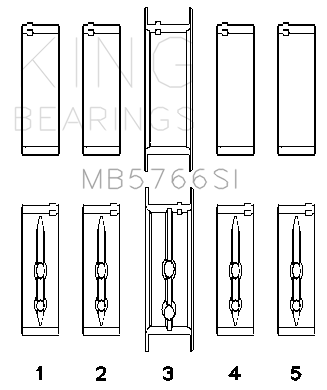

MB5766SI
Optional To MB5293SI: housing bore +.010" bimetal (aluminum silicon base) |
M5766U-SI M5766L-SI F5766U-SI F5766L-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
70.14 / 70.13 70.14 / 70.13 |
20.4 26.2 |
2.553 2.553 |
|
|

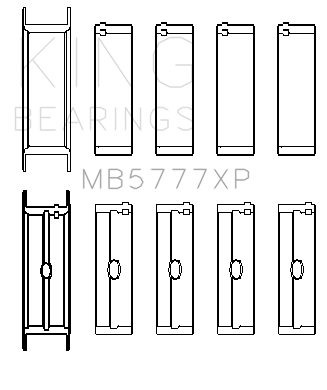

MB5777XP
Optional To MB5293SI: Race Bearings Race bearings, Trimetal [pMax Black] |
F5777U/PR-SX F5013L/PR-SX M5777U/PR-SX M5013L/PR-SX |
1 Pair 4 Pairs |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
26.1 20.4 |
2.428 2.428 |
||
|
MB5875SI
Optional To MB5293SI: flange O/S 010" bimetal (aluminum silicon base) |
M5293U-SI M5293L-SI F5875U-SI F5875L-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.2 |
2.426 2.426 |
|
|
MB5876SI
Optional To MB5293SI: flange O/S 020" bimetal (aluminum silicon base) |
M5293U-SI M5293L-SI F5876U-SI F5876L-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.2 |
2.426 2.426 |
|
|

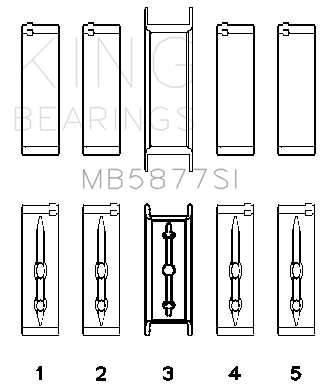

MB5877SI
Optional To MB5293SI: flange STD bimetal (aluminum silicon base) |
M5293U-SI M5293L-SI F5877U-SI F5877L-SI |
4 Pairs 1 Pair |
1,2,4,5 3 |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 26.2 |
2.426 2.426 |
|
|
MB5877SI232L
Optional To MB5877SI: Modified Version (Bi-Metal) bimetal (aluminum silicon base) |
M5293L-SI M5293L-SI |
58 Pairs 58 Pairs |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 20.4 |
2.426 2.426 |
||
|
MB5877SI232U
Optional To MB5877SI: Modified Version (Bi-Metal) bimetal (aluminum silicon base) |
M5293U-SI M5293U-SI |
58 Pairs 58 Pairs |
65.01 / 64.99 65.01 / 64.99 |
69.89 / 69.87 69.89 / 69.87 |
20.4 20.4 |
2.426 2.426 |
||
|
MB5877SI58LF
Optional To MB5877SI: bimetal (aluminum silicon base) |
F5877L-SI |
29 Pairs |
65.01 / 64.99 |
69.89 / 69.87 |
26.2 |
2.426 |
||
|
MB5877SI58UF
Optional To MB5877SI: Modified Version (Bi-Metal) bimetal (aluminum silicon base) |
F5877U-SI |
29 Pairs |
65.01 / 64.99 |
69.89 / 69.87 |
26.2 |
2.426 |
