General Motors 1978-1979 3277 CC 88.9 X 88.4 6
PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|

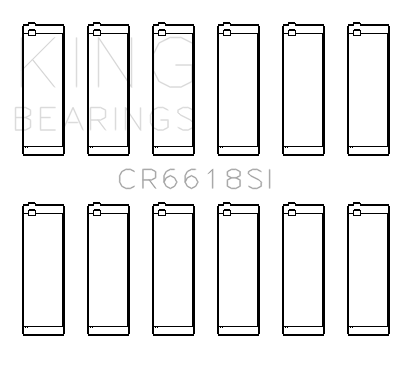

CR6618SI
bimetal (aluminum silicon base) |
C6618-SI |
6 Pairs |
53.34 / 53.31 |
56.53 / 56.51 |
18.1 |
1.572 |
||
|
CS 414BB
bimetal (babbitt) |
S 414/1- S 414/2- S 414/3- |
1 2 1 |
1 2,4 3 |
47.48 / 47.45 47.48 / 47.45 47.48 / 47.45 |
51.33 / 51.28 51.08 / 51.03 50.83 / 50.77 |
18.8 18.9 18.8 |
1.890 1.763 1.636 |
|
|

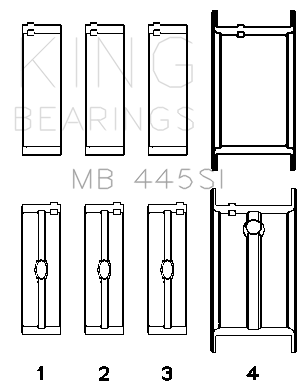

MB 445SI
bimetal (aluminum silicon base) |
M 557U-SI M 557L-SI F 557U-SI F 557L-SI |
3 Pairs 1 Pair |
1,2,3 4 |
62.21 / 62.19 62.20 / 62.18 |
67.09 / 67.07 67.09 / 67.07 |
20.4 43.7 |
2.426 2.426 |
Optional PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|

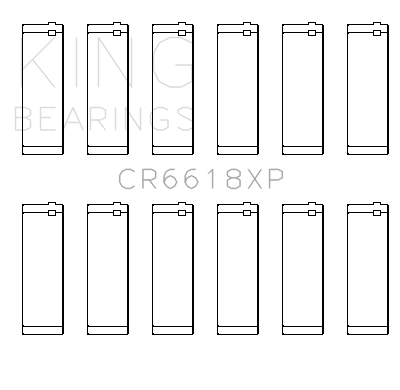

CR6618XP
Optional To CR6618SI: Material Version (pMax Black) Race bearings, Trimetal [pMax Black] |
C6618-PR-SX |
6 Pairs |
53.34 / 53.31 |
56.53 / 56.51 |
18.1 |
1.572 |
||
|

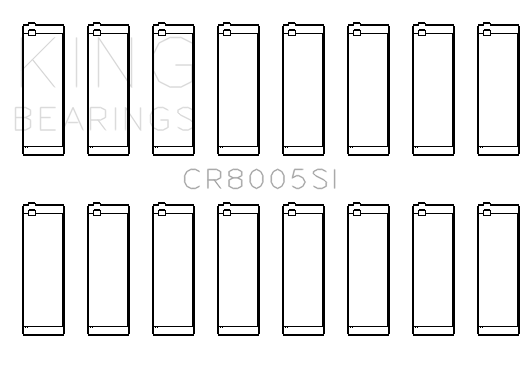

CR8005SI
Optional To CR6618SI: 8 pairs version of CR6618SI bimetal (aluminum silicon base) |
C6618-SI |
8 Pairs |
53.34 / 53.31 |
56.53 / 56.51 |
18.1 |
1.572 |
||
|

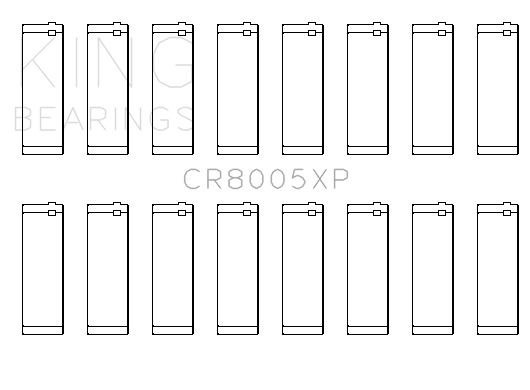

CR8005XP
Optional To CR6618XP: 8 pairs version of CR6618XP Race bearings, Trimetal [pMax Black] |
C6618-PR-SX |
8 Pairs |
53.34 / 53.31 |
56.53 / 56.51 |
18.1 |
1.572 |
||
|

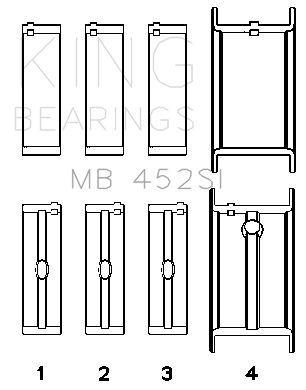

MB 452SI
Optional To MB 445SI: housing bore +.020" bimetal (aluminum silicon base) |
M5570U-SI M5570L-SI F5570U-SI F5570L-SI |
3 Pairs 1 Pair |
1,2,3 4 |
62.21 / 62.19 62.20 / 62.18 |
67.60 / 67.58 67.60 / 67.58 |
20.4 43.7 |
2.680 2.680 |
|
|
MB4530SI
Optional To MB 445SI: flange O/S .020" bimetal (aluminum silicon base) |
M 557U-SI M 557L-SI F5184U-SI F5184L-SI |
3 Pairs 1 Pair |
1,2,3 4 |
62.21 / 62.19 62.20 / 62.18 |
67.09 / 67.07 67.09 / 67.07 |
20.4 44.1 |
2.426 2.426 |
