Honda 1987-1996 1590 CC 75 X 90 4
PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|

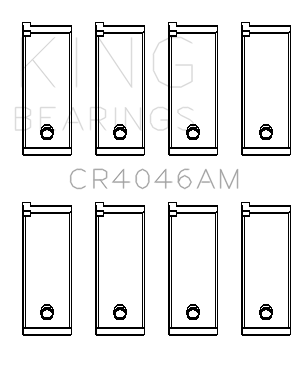

CR4046AM
bimetal (aluminum base) |
C4046-AM |
4 Pairs |
45.00 / 44.98 |
48.02 / 48.00 |
18.5 |
1.508 |
||
|
MB5568AM
bimetal (aluminum base) |
M5568-AM |
5 Pairs |
55.00 / 54.98 |
59.02 / 59.00 |
20.0 |
2.004 |
||
|
TW 140AM
bimetal (aluminum base) |
W 140-AM |
1 Pair |
61.25 / 61.00 |
82.00 / 82.00 |
0.0 |
2.499 |
Optional PRODUCTS
SET |
Image |
Part No. |
Qty. |
Position |
Crankshaft |
Housing |
Length |
Max Wall Thickness |
|---|---|---|---|---|---|---|---|---|
|
CR4046XP
Superseded By: CR4046XPC Optional To CR4046AM: Material Version (pMax Black) Race bearings, Trimetal [pMax Black] |
C4046-SX |
4 Pairs |
45.00 / 44.98 |
48.02 / 48.00 |
18.5 |
1.499 |
||
|

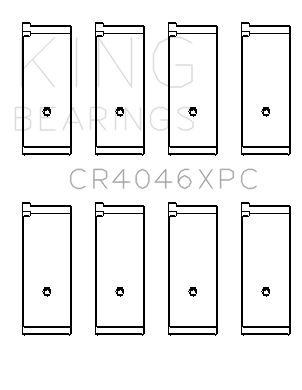

CR4046XPC
Optional To CR4046AM: Race Bearings pmaxkote (racing line), polymer coated |
C4046-PRC-SX |
4 Pairs |
45.00 / 44.98 |
48.02 / 48.00 |
18.5 |
1.499 |
||
|
MB5568XP
Optional To MB5568AM: Material Version (pMax Black) Race bearings, Trimetal [pMax Black] |
M5568-PR-SX |
5 Pairs |
55.00 / 54.98 |
59.02 / 59.00 |
20.0 |
2.000 |
